LE518 LED Bulkhead Emergency Light with Exit Sign Conversion Kit IP65

Quantity:
SKU: 3240798905
Model: LE518

{{ variable.name }}

{{ value.name }}
Product Details

LE518 LED Bulkhead Emergency Light with Exit Sign Conversion Kit IP65

Product Summary

The LE518 bulkhead emergency light can be configured as an effective exit sign using the optional edge-lit conversion kit. This flexible solution combines the reliability of emergency lighting with clear exit signage, enhancing safety in commercial and public spaces.

Key Selling Points

  • Exit sign conversion capability: Cost-effective solution for dual-purpose lighting and signage.
  • Edge-lit design: Provides uniform and clearly visible exit indication.
  • Optional multi-directional sticker legend kit: Allows customized direction arrows.
  • IP65 rating: Suitable for indoor and covered outdoor installations.
  • 3-hour battery backup: Ensures exit sign remains illuminated during power outages.

Technical Specifications

ModelLE518
Voltage220-240V, 50-60Hz
Input PowerAC/5W, DC/1W
Output Power1.7W
Lumen Output200 lm
CCT6000-7000K
Battery3.2V 2000mAh LiFePO4
Max Charge Current150mA
Max Discharge Current550mA
Charging Time≤24H
Discharge Time3H
LED2835-0.2W*20pcs
IP RatingIP65
Mode of OperationMaintained / Non-maintained

Models and Options

Base unit converts to exit sign with optional kit. Multi-directional sticker legend kit available to indicate left, right, or both directions.

Materials and Structure

Clear polycarbonate diffuser & ABS housing, designed for consistent light output and durability.

Applications

Suitable for hotels, office buildings, shopping centers, and parking garages where exit signage is required.

Customization

Custom legends and brand colors available on request. JIMING supports OEM/ODM projects with technical expertise.

FAQ

What is included in the exit sign conversion kit?

The kit includes an edge-lit panel and necessary mounting accessories for conversion.

Can the direction of the exit sign be customized?

Yes, the multi-directional sticker legend kit allows custom direction indication.

How long does the battery last?

After a full charge, the 3.2V 2000mAh LiFePO4 battery provides 3 hours of backup power.

Is the exit sign bright enough?

The 200 lumens output ensures clear visibility in emergency conditions.

What are the operating modes?

It supports both maintained and non-maintained operation, selectable during installation.

Can it be used outdoors?

With IP65 rating, it can be installed in covered outdoor locations.

Is it compliant with safety standards?

JIMING products are manufactured in ISO 9001 certified facilities and comply with CE, RoHS, and other international standards.

Inquiry Information

For pricing and technical details, contact inquiry-sgzt@ijiming.com or call +86-135-6655-7272.

Images

Bulkhead emergency light LE518 with exit sign conversion
LE518 exit sign configuration

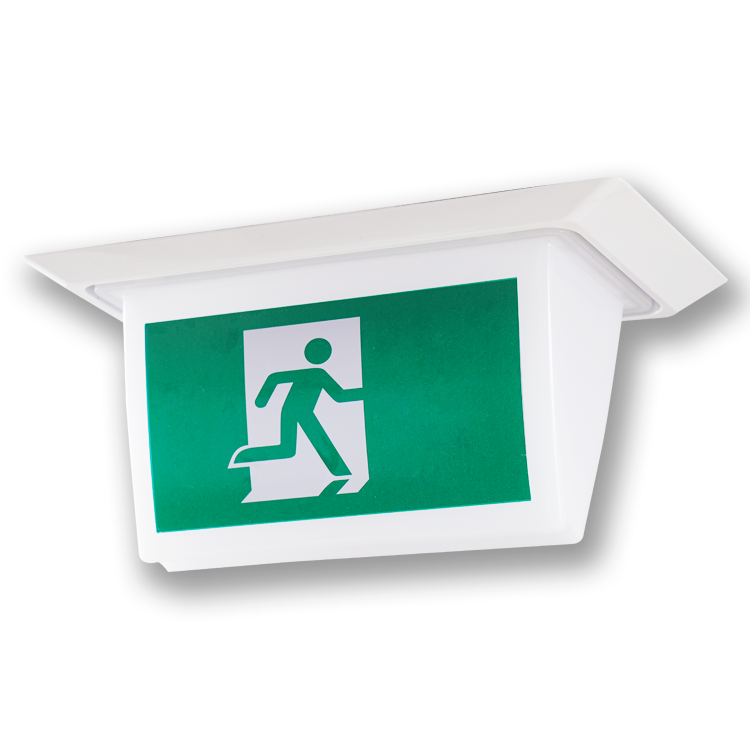

Bulkhead emergency light LE518 with edge-lit panel
LE518 with edge-lit exit panel
