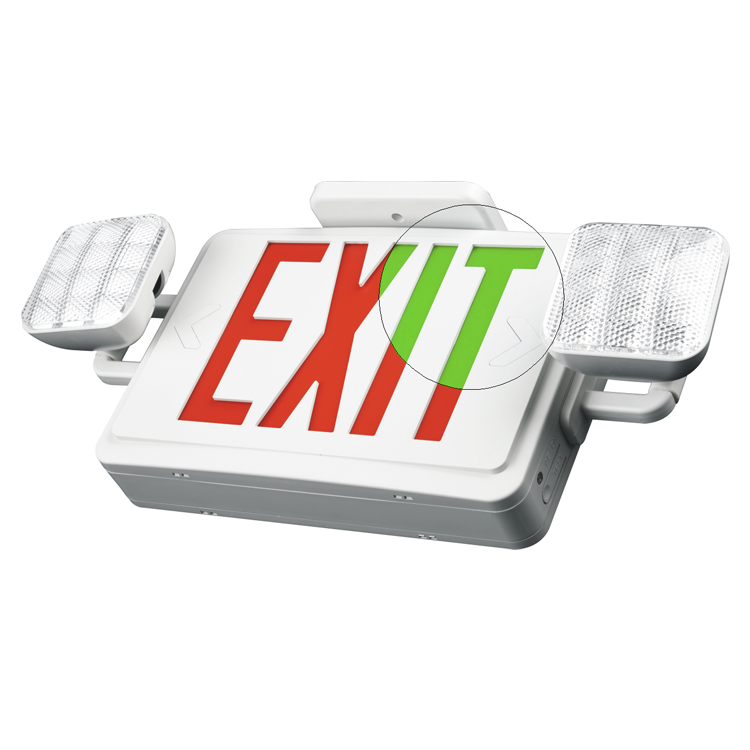

Bi-Color LED Combo Emergency Exit Sign with Two LED Heads
This UL listed combo emergency exit sign combines an illuminated exit sign with two adjustable LED heads for emergency lighting. It features a durable thermoplastic ABS housing with UL 94V-0 flame rating, ensuring reliable performance in fire-rated environments. The sign provides 90 minutes of emergency operation on a built-in 3.6V 1200mAh Ni-MH battery, and supports both 120V and 277V AC input. Ideal for commercial, industrial, and residential applications.
Key Selling Points
UL 94V-0 rated ABS housing: Injection-molded thermoplastic ensures high flame resistance and durability for safety-critical environments.
90-minute emergency backup: Built-in 3.6V 1200mAh Ni-MH battery provides minimum 90 minutes of illumination during power failure, meeting safety standards.
Dual voltage 120/277VAC: Flexible installation in various electrical systems without additional transformers.

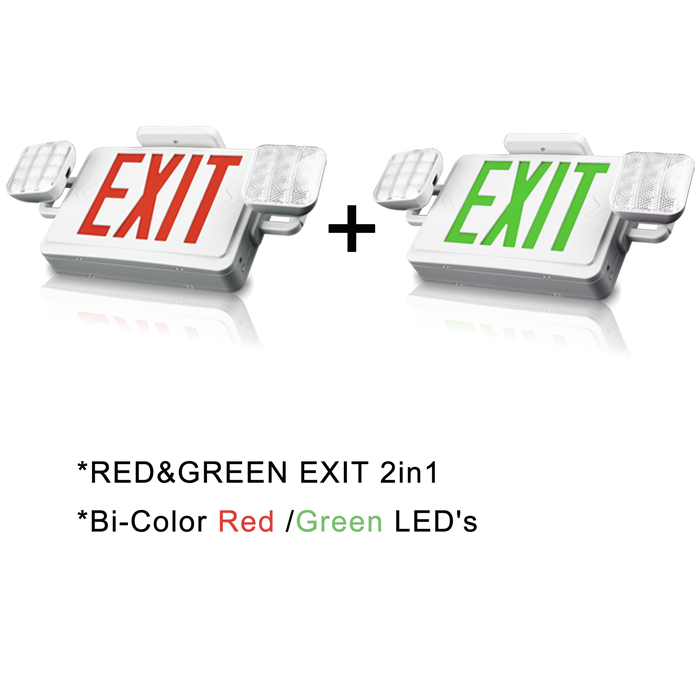

Bi-color LED letters (red/green): High visibility with 6-inch letters and 3/4-inch stroke, enhancing egress visibility.
Removable directional indicators: Customizable to guide evacuation routes effectively.
Single or double face options: Applicable for wall or ceiling mounting as needed.
Technical Specifications
Parameter
Value
Model
JLEC2BCW
Type
Combo Emergency Exit Sign with LED Heads
Housing Material
Thermoplastic ABS (UL 94V-0)
Input Voltage
120V / 277VAC
Battery
3.6V 1200mAh Ni-MH
Emergency Runtime
≥ 90 minutes
Recharge Time
≤ 24 hours
LED Heads
2 × 8pcs 2835 SMT LEDs
Letter Height
6"
Stroke Width
3/4"
Indicator
Test switch and charge indicator
Operating Temperature
0°C to 40°C
Certifications
UL listed
Models and Options
Available with red or green letters, single or double face, and with or without directional arrows. Custom configurations can be arranged based on project requirements.
Materials and Structure
The unit features an injection-molded thermoplastic ABS housing with UL 94V-0 flame rating. The structure allows for easy installation via a universal J-box mounting pattern, and is designed for indoor damp locations.
Applications
Suitable for houses, buildings, warehouses, hotels, parking garages, security facilities, and other indoor areas requiring emergency egress compliance.
Customization
We offer customization for language (e.g., SALIDA), directional arrows, face configuration, and voltage options. Contact our team for tailored solutions.
FAQ
What certifications does this exit sign have?
It is UL listed, ensuring compliance with safety standards for emergency lighting.
How long does the battery last in an emergency?
The built-in 3.6V 1200mAh Ni-MH battery provides a minimum of 90 minutes of emergency operation.
Can the sign be used with both 120V and 277V systems?
Yes, it features dual voltage operation (120V/277VAC).
Is the housing flame retardant?
Yes, the housing is made of thermoplastic ABS with UL 94V-0 flame rating.
Is installation easy?
Yes, it uses a universal J-box mounting pattern and is designed for quick installation.
Can the directional indicators be removed?
Yes, they are removable for flexible installation.
What are the available letter colors?
Red and green are available.
